-25 Degree Cold Temp EVI Heat Pump For Heating Cooling And Hot Water

Technology Specification

Monoblock evi air to water source heat pump factory description:

* Products design and produce heat pump by European standard EN14511, approved by ECM with its high efficiency. Factory audited by Bureau Veritas.

*Delivers higher capacity at low evaporating temperature thereby better responding to heating requirement thanks to EVI compressor

*It also results in less supplementary heating to cover the full heating demand on the coldest days.

*Workable ambient temperature range - 25℃ to 35℃.

*Two speed energy saving fan motors. The speed of fan varies so only the required amount of air is utilized. The blades are specially designed to move as much air as possible at the lowest noise level.

*Timer ON/OFF.

*Varied heat curve. Controlled water temperature varies according to ambient temperature

*Most components are well sealed to retain heat and prevent dripping

Heating + Domestic hot water

Cooling

Cooling+Domestic hot water

Domestic hot water

Ground source heat pump

Heating + Domestic hot water

Products efficiency Certified by ECM, Factory audited by Bureau Veritas.

Bafa listed

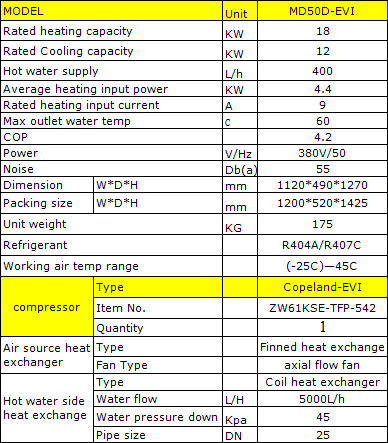

Specification:

1) Model: MD30D-EVI /MD50D-EVI /MD60D-EVI /MD100D-EVI

2) Power supply: 380-415V/3/50Hz

3) Refrigerant: Honeywell R410a/R417A

4) Heating,cooling and domestic hot water

5) Design and tested by EN14511

Adopt with world famous parts:

1) Copeland scroll compressor

2) Automaticly controller

3) Stainless steel plate type heat exchanger

4) electronic parts

5) Emerson expansion valve and dry filter

6) Honeywell 3 way revert valve is optional part

7) Adjustable low pressure switch

8) Wilo water pump (option)

9) 3KW electric heater (option)

1.Adopt world famous parts

2.Suitable for the coldest winter area

3.The most high efficiency heat pump

4.Maintenance free

Type:EVI heat pump

Certification:CE ISO CCC UKAS,ROHS

Place of Origin:Guangdong, China (Mainland)

Brand Name:Meeting

Model Number:MD50D

Condenser:Double thread copper tube heat exchanger

Evaporator:High efficiency inner thread tube connected with

Throttling Device:Electric expansiona valve

Refrigerant:R417A ,R407A,R410A

Net Weight (kg):175

Compressor:Copeland-EVI

Power supply:380V/50HZ

Working air temp range:-25—(45)

Packaging Details

Carton and Wooden Package,

OEM is available

Delivery Time

15 working days after arrival of down payment

heat pump unit

high efficiency heat pump

-25 Degree Cold Temp EVI Heat Pump For Heating Cooling And Hot Water Images
